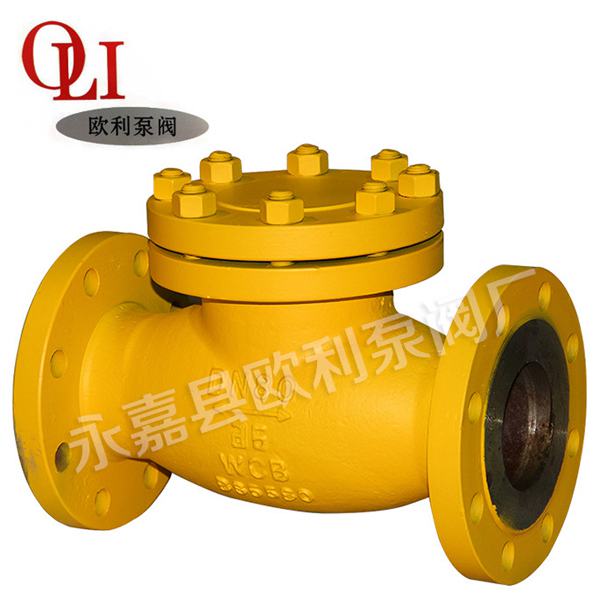

Pipeline various conditions - H44B PN16~PN250 swing steel check valve is applicable to pressure 1.6~25MPa working temperature of -29~+550 DEG C petroleum,chemical, pharmaceutical, chemical fertilizer, the electric power industry and so on, for medium is water, oil, steam, acid medium.
[features]
H44B, swing steel check valve is generated by the pipeline flow of the medium itselfforce automatically turned on and off, is an automatic valve. Check valve for pipeline system, its main role is to prevent the media back, to prevent the pump and drive motor machine inversion, and the container medium discharge. Check valve can also be used for the pipe to the pressure may rise to more than one main system pressureauxiliary system supplies the.
Model H44H-16C~250 H44W-16P~250
The working pressure (MPa) 1.6~25
Applicable temperature (c) = 425 = 550
Applicable medium of water, steam, oil and weak corrosive medium
Material of valve body, valve cover, valve carbon chromium nickel titanium and stainless steel
Sealing surface of carbon steel surfacing iron-based alloy body seal
The performance parameters of []
Main external and connecting dimensions
Nominal diameter of DN main dimensions and connection dimensions
L D D1 D2 B Z-d H
H44B-16C
25160115856516 4-14 100
321801351007816 4-18 105
402001451008516 4-18 115
5023016012510016 4-18 135
6529018014512018 4-18 142
8031019516013520 8-18 165
10035021518015520 8-18 180
12540024521018522 8-18 210
15048028024021024 8-23 233
20050033529526526 12-23 304
25055040535532030 12-25 348
30065046041037530 12-25 390
35075052047043534 16-25 430
40085058052548536 16-30 468
H44B-25
25160115856516 4-14 100
321801351007816 4-18 105
402001451108516 4-18 115
5023016012510020 4-18 160
6529018014512022 8-18 175
8031019516013522 8-18 185
10035023019016024 8-23 220
12540027022018828 8-25 248
15048030025021830 8-25 276
20055036031027834 12-25 350
25065042537033236 12-30 410
30075048543039040 16-30 430
35085055049044844 16-34 518
40095061055050548 16-34 560
